This is a special video plugin that integrates example ads (i.e. pre-rolls, mid-rolls, and post-rolls) into a video. It can be used as a template for integrating different ad providers. The plugin can be used with version 0.1.146 or higher.
Usage
The plugin must be loaded with a video URL. Optionally, the content type and GUID can be indicated. Please see following action syntax example.
video:plugin:http://msx.benzac.de/plugins/ad.html?url={URL}&type={TYPE}&guid={GUID}
If you would like to use the plugin as reference to implement your own plugin, please have a look at these implementation scripts:
Syntax
Parameter syntax of ad plugin.
| Parameter | Type | Default Value | Mandatory | Description |
|---|---|---|---|---|
url |
string |
null |
Yes | The URL of the video. It is recommended to encode the value to ensure that it is evaluated correctly (e.g. "http://msx.benzac.de/media/video1.mp4" → "http%3A%2F%2Fmsx.benzac.de%2Fmedia%2Fvideo1.mp4"). |
type |
string |
"video" |
No | The type of the content. - "video": Video content.- "audio": Audio content. If this type is set, the plugin will not serve any ads. |
guid |
string |
null |
No | The GUID of the content that can be used for tracking. |
Example
Please note that this example uses the MRSS Feeds interaction plugin to load example content.

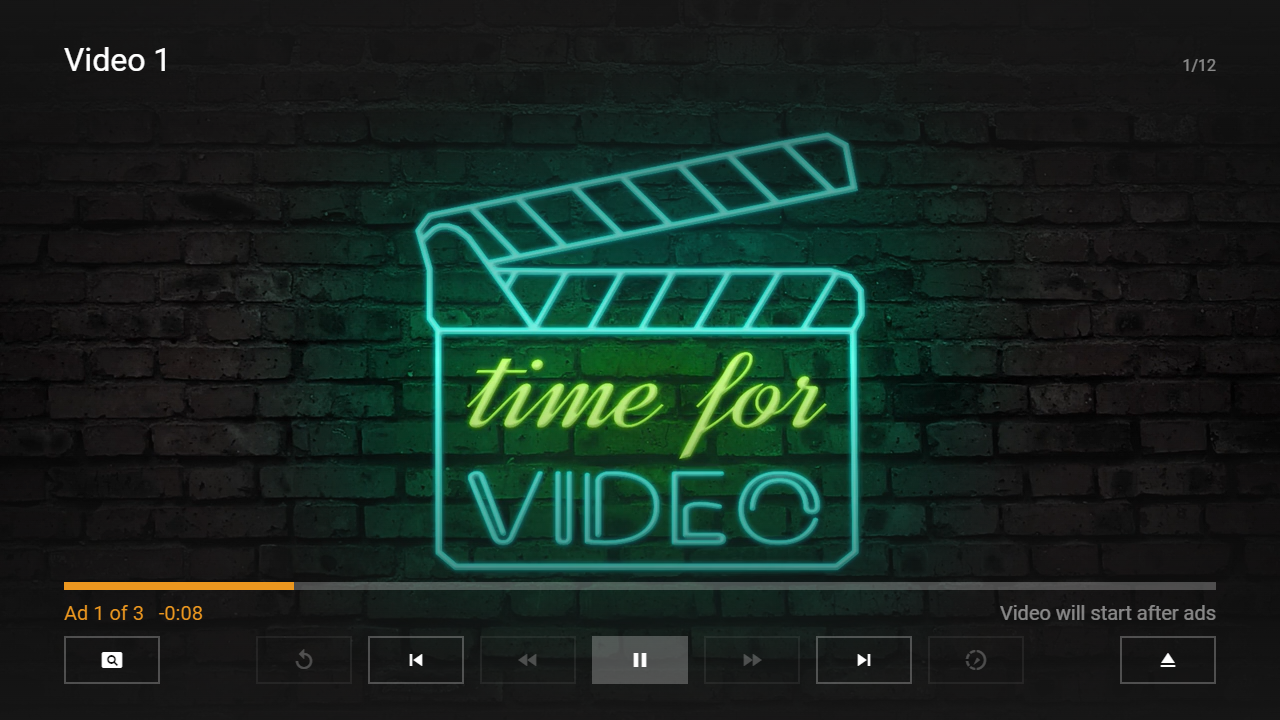

Screenshot
Code
{
"reference": "request:interaction:http://msx.benzac.de/info/data/mrss/example.xml|||http://msx.benzac.de/plugins/ad.html?url={URL}&type={TYPE}&guid={GUID}@http://msx.benzac.de/interaction/mrss.html",
"pages": []
}
Demo
Note: This demo will only work properly if ad blockers are disabled.
