IMA Plugin
IMA stands for Interactive Media Ads and is a special video plugin that integrates ads (i.e. pre-rolls, mid-rolls, and post-rolls) into a video by using the Google IMA SDK (https://developers.google.com/interactive-media-ads). The plugin can be used with version 0.1.146 or higher.
Usage
The plugin must be loaded with a video URL. Optionally, the ad tag URL can be indicated. Please see following action syntax example.
video:plugin:http://msx.benzac.de/plugins/ima.html?url={URL}&ad={AD_TAG_URL}
If you would like to use the plugin as reference to implement your own plugin, please have a look at these implementation scripts:
Syntax
Parameter syntax of IMA plugin
| Parameter | Type | Default Value | Mandatory | Description |
|---|---|---|---|---|
url |
string |
null |
Yes | The URL of the video. It is recommended to encode the value to ensure that it is evaluated correctly (e.g. "http://msx.benzac.de/media/video1.mp4" → "http%3A%2F%2Fmsx.benzac.de%2Fmedia%2Fvideo1.mp4"). |
ad |
string |
null |
No | The URL of the ad tag. It is recommended to encode the value to ensure that it is evaluated correctly (e.g. "https://pubads.g.doubleclick.net/gampad/ads?iu=/21775744923/external/single_ad_samples&sz=640x480..." → "https%3A%2F%2Fpubads.g.doubleclick.net%2Fgampad%2Fads%3Fiu%3D%2F21775744923%2Fexternal%2Fsingle_ad_samples%26sz%3D640x480...").Optionally, the ad tag URL can be indicated as base-64 encoded URL by using the ID syntax id:{BASE_64_ENCODED_URL} (e.g. id:aHR0cHM6Ly9wdWJhZHMuZy5kb3VibGVjbGljay5uZXQvZ2FtcGFkL2Fkcz9pdT0vMjE3NzU3NDQ5MjMvZXh0ZXJuYWwvc2luZ2xlX2FkX3NhbXBsZXMmc3o9NjQweDQ4MA...)Note: Please note that it is also possible to indicate the ad tag URL via the Extended Properties of a content item. In this case, this parameter is ignored. |
debug |
number |
0 |
No | If this parameter is set to 1, debug events of the HTML5 content (and possible ads) player will be logged.Note: Depending on the platform, the ads are played in a separate HTML5 player or in a composite HTML5 player (a player that plays ads and content in the same element). |
Property syntax of extended properties for IMA plugin
| Property | Value | Example | Description |
|---|---|---|---|
ima:url |
{AD_TAG_URL} |
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads""ima:url": "https://pubads.g.doubleclick.net/gampad/ads?iu=/21775744923/external/single_ad_samples&sz=640x480..." |
The base or complete URL of the ad tag. Note: If this property is not set, the ad URL parameter is used. |
ima:param:{PARAM_NAME} |
{PARAM_VALUE} |
"ima:param:iu": "/21775744923/external/single_ad_samples""ima:param:output": "vast" |
Optional ad tag URL parameters to be appended to the base URL of the ad tag. Note: This property is ignored if no ima:url property is set. |
ima:content:duration |
{DURATION} |
"ima:content:duration": "60" |
The content duration in seconds used by the Google IMA SDK. For more information, please see the contentDuration property of the AdsRequest class (https://developers.google.com/interactive-media-ads/docs/sdks/html5/client-side/reference/js/google.ima.AdsRequest#contentDuration). |
ima:content:keywords |
{KEYWORDS} |
"ima:content:keywords": "Nature, Education" |
The content keywords used by the Google IMA SDK. For more information, please see the contentKeywords property of the AdsRequest class (https://developers.google.com/interactive-media-ads/docs/sdks/html5/client-side/reference/js/google.ima.AdsRequest#contentKeywords). |
ima:content:title |
{TITLE} |
"ima:content:title": "Example Video" |
The content title used by the Google IMA SDK. For more information, please see the contentTitle property of the AdsRequest class (https://developers.google.com/interactive-media-ads/docs/sdks/html5/client-side/reference/js/google.ima.AdsRequest#contentTitle). |
ima:pauseable |
{BOOLEAN_VALUE} |
"ima:pauseable": "false" |
Indicates if ads can be paused. By default, pausing ads is allowed. |
ima:skippable |
{BOOLEAN_VALUE} |
"ima:skippable": "false" |
Indicates if ads can be skipped. By default, skipping ads is allowed. Note: Please note that this property has no effect if an ad itself does not support skipping (i.e. no skip offset is indicated). |
Example
Please note that this example uses the ad tag URLs from the Google IMA SDK samples (https://developers.google.com/interactive-media-ads/docs/sdks/html5/client-side/tags).

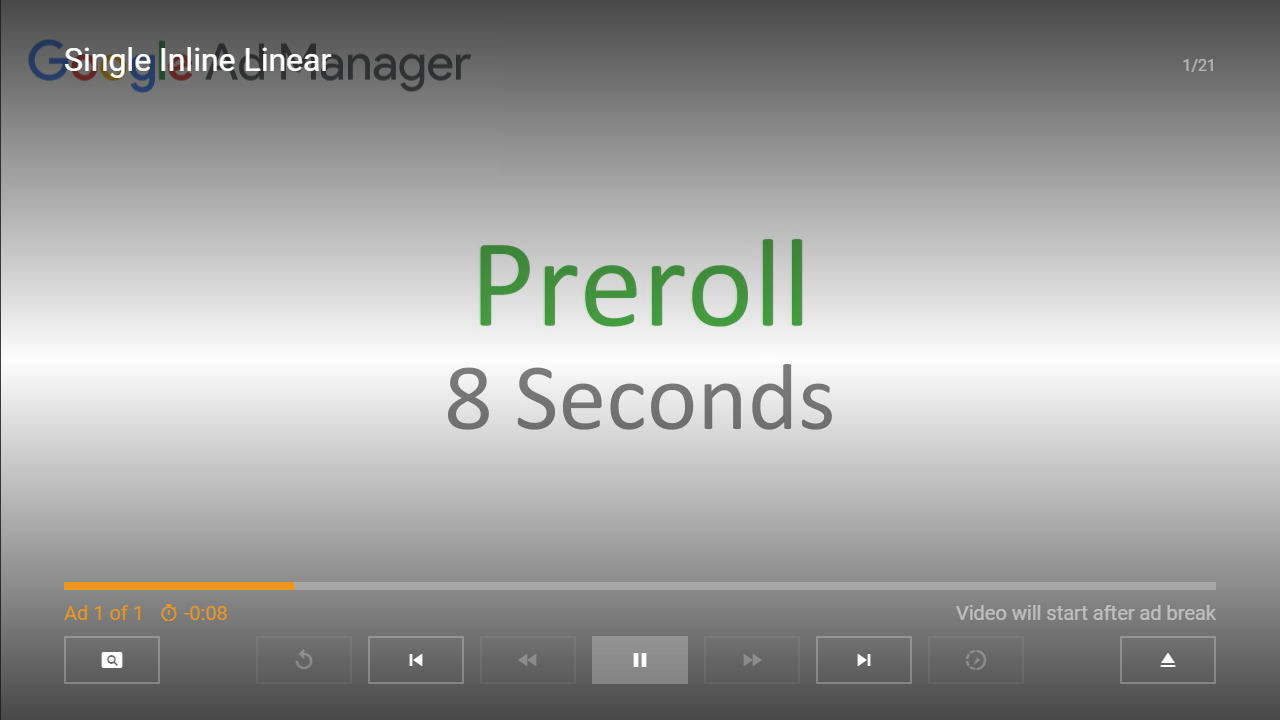

Screenshot
Code
{
"type": "list",
"headline": "IMA Plugin Test",
"note": "https://developers.google.com/interactive-media-ads/docs/sdks/html5/client-side/tags",
"compress": true,
"template": {
"type": "control",
"layout": "0,0,16,1",
"icon": "movie"
},
"items": [{
"label": "Single Inline Linear",
"playerLabel": "Single Inline Linear",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/single_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ct=linear",
"ima:param:ciu_szs": "300x250,728x90",
"ima:param:gdfp_req": "1",
"ima:param:output": "vast",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:correlator": ""
}
}, {
"label": "Single Skippable Inline",
"playerLabel": "Single Skippable Inline",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/single_preroll_skippable",
"ima:param:sz": "640x480",
"ima:param:ciu_szs": "300x250,728x90",
"ima:param:gdfp_req": "1",
"ima:param:output": "vast",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:correlator": ""
}
}, {
"label": "Single Redirect Linear",
"playerLabel": "Single Redirect Linear",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/single_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ct=redirectlinear",
"ima:param:ciu_szs": "300x250,728x90",
"ima:param:gdfp_req": "1",
"ima:param:output": "vast",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:correlator": ""
}
}, {
"label": "Single Redirect Error",
"playerLabel": "Single Redirect Error",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/single_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ct=redirecterror",
"ima:param:ciu_szs": "300x250,728x90",
"ima:param:gdfp_req": "1",
"ima:param:output": "vast",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:correlator": ""
}
}, {
"label": "Single Redirect Broken (Fallback)",
"playerLabel": "Single Redirect Broken (Fallback)",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/single_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ct=redirecterror",
"ima:param:ciu_szs": "300x250,728x90",
"ima:param:gdfp_req": "1",
"ima:param:output": "vast",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:nofb": "1",
"ima:param:correlator": ""
}
}, {
"label": "Single VPAID 2.0 Linear",
"playerLabel": "Single VPAID 2.0 Linear",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/single_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ct=linearvpaid2js",
"ima:param:ciu_szs": "300x250,728x90",
"ima:param:gdfp_req": "1",
"ima:param:output": "vast",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:correlator": ""
}
}, {
"label": "Single VPAID 2.0 Non-Linear",
"playerLabel": "Single VPAID 2.0 Non-Linear",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/single_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ct=nonlinearvpaid2js",
"ima:param:ciu_szs": "300x250,728x90",
"ima:param:gdfp_req": "1",
"ima:param:output": "vast",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:correlator": ""
}
}, {
"label": "Single Non-linear Inline",
"playerLabel": "Single Non-linear Inline",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/nonlinear_ad_samples",
"ima:param:sz": "480x70",
"ima:param:cust_params": "sample_ct=nonlinear",
"ima:param:ciu_szs": "300x250,728x90",
"ima:param:gdfp_req": "1",
"ima:param:output": "vast",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:correlator": ""
}
}, {
"label": "VMAP Session Ad Rule Pre-roll",
"playerLabel": "VMAP Session Ad Rule Pre-roll",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/vmap_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sar=a0f2",
"ima:param:ciu_szs": "300x250",
"ima:param:gdfp_req": "1",
"ima:param:ad_rule": "1",
"ima:param:output": "vmap",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:correlator": ""
}
}, {
"label": "VMAP Pre-roll",
"playerLabel": "VMAP Pre-roll",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/vmap_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ar=preonly",
"ima:param:ciu_szs": "300x250",
"ima:param:gdfp_req": "1",
"ima:param:ad_rule": "1",
"ima:param:output": "vmap",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:correlator": ""
}
}, {
"label": "VMAP Pre-roll + Bumper",
"playerLabel": "VMAP Pre-roll + Bumper",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/vmap_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ar=preonlybumper",
"ima:param:ciu_szs": "300x250",
"ima:param:gdfp_req": "1",
"ima:param:ad_rule": "1",
"ima:param:output": "vmap",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:correlator": ""
}
}, {
"label": "VMAP Post-roll",
"playerLabel": "VMAP Post-roll",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/vmap_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ar=postonly",
"ima:param:ciu_szs": "300x250",
"ima:param:gdfp_req": "1",
"ima:param:ad_rule": "1",
"ima:param:output": "vmap",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:correlator": ""
}
}, {
"label": "VMAP Post-roll + Bumper",
"playerLabel": "VMAP Post-roll + Bumper",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/vmap_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ar=postonlybumper",
"ima:param:ciu_szs": "300x250",
"ima:param:gdfp_req": "1",
"ima:param:ad_rule": "1",
"ima:param:output": "vmap",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:correlator": ""
}
}, {
"label": "VMAP Pre-, Mid-, and Post-rolls, Single Ads",
"playerLabel": "VMAP Pre-, Mid-, and Post-rolls, Single Ads",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/vmap_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ar=premidpost",
"ima:param:ciu_szs": "300x250",
"ima:param:gdfp_req": "1",
"ima:param:ad_rule": "1",
"ima:param:output": "vmap",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:cmsid": "496",
"ima:param:vid": "short_onecue",
"ima:param:correlator": ""
}
}, {
"label": "VMAP - Pre-roll Single Ad, Mid-roll Standard Pod with 3 ads, Post-roll Single Ad",
"playerLabel": "VMAP - Pre-roll Single Ad, Mid-roll Standard Pod with 3 ads, Post-roll Single Ad",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/vmap_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ar=premidpostpod",
"ima:param:ciu_szs": "300x250",
"ima:param:gdfp_req": "1",
"ima:param:ad_rule": "1",
"ima:param:output": "vmap",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:cmsid": "496",
"ima:param:vid": "short_onecue",
"ima:param:correlator": ""
}
}, {
"label": "VMAP - Pre-roll Single Ad, Mid-roll Optimized Pod with 3 Ads, Post-roll Single Ad",
"playerLabel": "VMAP - Pre-roll Single Ad, Mid-roll Optimized Pod with 3 Ads, Post-roll Single Ad",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/vmap_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ar=premidpostoptimizedpod",
"ima:param:ciu_szs": "300x250",
"ima:param:gdfp_req": "1",
"ima:param:ad_rule": "1",
"ima:param:output": "vmap",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:cmsid": "496",
"ima:param:vid": "short_onecue",
"ima:param:correlator": ""
}
}, {
"label": "VMAP - Pre-roll Single Ad, Mid-roll Standard Pod with 3 Ads, Post-roll Single Ad (bumpers around all ad breaks)",
"playerLabel": "VMAP - Pre-roll Single Ad, Mid-roll Standard Pod with 3 Ads, Post-roll Single Ad (bumpers around all ad breaks)",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/vmap_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ar=premidpostpodbumper",
"ima:param:ciu_szs": "300x250",
"ima:param:gdfp_req": "1",
"ima:param:ad_rule": "1",
"ima:param:output": "vmap",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:cmsid": "496",
"ima:param:vid": "short_onecue",
"ima:param:correlator": ""
}
}, {
"label": "VMAP - Pre-roll Single Ad, Mid-roll Optimized Pod with 3 Ads, Post-roll Single Ad (bumpers around all ad breaks)",
"playerLabel": "VMAP - Pre-roll Single Ad, Mid-roll Optimized Pod with 3 Ads, Post-roll Single Ad (bumpers around all ad breaks)",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/vmap_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ar=premidpostoptimizedpodbumper",
"ima:param:ciu_szs": "300x250",
"ima:param:gdfp_req": "1",
"ima:param:ad_rule": "1",
"ima:param:output": "vmap",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:cmsid": "496",
"ima:param:vid": "short_onecue",
"ima:param:correlator": ""
}
}, {
"label": "VMAP - Pre-roll Single Ad, Mid-roll Standard Pods with 5 Ads Every 10 Seconds, Post-roll Single Ad",
"playerLabel": "VMAP - Pre-roll Single Ad, Mid-roll Standard Pods with 5 Ads Every 10 Seconds, Post-roll Single Ad",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/vmap_ad_samples",
"ima:param:sz": "640x480",
"ima:param:cust_params": "sample_ar=premidpostlongpod",
"ima:param:ciu_szs": "300x250",
"ima:param:gdfp_req": "1",
"ima:param:ad_rule": "1",
"ima:param:output": "vmap",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:cmsid": "496",
"ima:param:vid": "short_onecue",
"ima:param:correlator": ""
}
}, {
"label": "SIMID Survey Pre-roll",
"playerLabel": "SIMID Survey Pre-roll",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/simid",
"ima:param:description_url": "https://developers.google.com/interactive-media-ads",
"ima:param:sz": "640x480",
"ima:param:gdfp_req": "1",
"ima:param:output": "vast",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:correlator": ""
}
}, {
"label": "OM SDK Sample Pre-roll",
"playerLabel": "OM SDK Sample Pre-roll",
"action": "video:plugin:http://msx.benzac.de/plugins/ima.html?url=http://msx.benzac.de/media/video3.mp4",
"properties": {
"control:type": "extended",
"ima:url": "https://pubads.g.doubleclick.net/gampad/ads",
"ima:param:iu": "/21775744923/external/omid_ad_samples",
"ima:param:description_url": "http://test_site.com/homepage",
"ima:param:sz": "640x480",
"ima:param:gdfp_req": "1",
"ima:param:output": "vast",
"ima:param:unviewed_position_start": "1",
"ima:param:env": "vp",
"ima:param:impl": "s",
"ima:param:vpmute": "0",
"ima:param:vpa": "0",
"ima:param:vad_forma": "linear",
"ima:param:url": "http://test_site.com",
"ima:param:vpos": "preroll",
"ima:param:correlator": ""
}
}]
}
Demo
Note: This demo will only work properly if ad blockers are disabled.
